United States Mission to the United Nations

Built in
2005-2010
Height
106.68m
Floors
22
Location
Manhattan, New York, United States
Some parts of this article have been translated using Google’s translation engine. We understand the quality of this translation is not excellent and we are working to replace these with high quality human translations.

Introduction

The architects of the firm Gwathmey Siegel & Associates, project managers commented, “… the challenge was to design an iconic tower that transcended the strict programming and technical constraints, and become an attractive and representative benchmark for architecture and democracy… “. The main architect was Charles Gwathmey who died in 2009, about two years before the structure was completed. In the opening speech, the then US Ambassador to the UN Susan Rice thanked posthumously Gwathmey effort. Although the structure was completed in 2010, the opening was postponed until March 29, 2011.

The building is named after former Secretary of Commerce for the United States, Ronald H. Brown, killed along with 34 others in a plane crash in 1996 in Croatia, where he was on a diplomatic mission.

The US Mission to the United Nations is the formal title of the US delegation to the United Nations (UN). Every nation in the UN has a similar delegation, although only a few are members of the Security Council. The Mission of the United States joined in the original founding of the UN, among the 51 member states under the United Nations Charter in 1945.

Situation

The building of the Permanent Mission of the United States is located on the opposite side to Building United States Mission to the United Nations on the 1st Av, its main direction is 795-803 1st Avenue and 45th Street on the number 340-344 in city ​​of New York, United States.

Concept

The building is an abstract reference to all previous skyscrapers, combining a composite of layers, composition of shapes and materials, both horizontal and vertical volume. The project presents a pedestrian scale, a scale of place and scale city that aims to be both memorable and inspiring.

Spaces

The new building replaces the former US Mission to the United Nations, a 12-story building that had been too small and too old for current needs, including security.
The tower, away from the street 12,19m, rises almost 167m base being surrounded by a glass atrium with a striking undulating canopy. It is topped by a cylindrical roundabout. The upper floor offers a commanding view not only of the United Nations, but also around the city of New York, which has been the iconic home of the headquarters of the UN since 1952.

The building has offices, meeting rooms and reception areas for members of the Permanent Mission. It offers space for the Information Agency US and Foreign Office, as well as spaces for visitors. Its 22 floors are designed following strict criteria seguridad.Las press conference areas are located both at the base of the building and on top. There is a fully insulated and soundproofed room that is used for sending classified information to the White House. Inside the staff and visitors have separate elevators.

Structure and materials

The vertical structure is set back from the street 12,19m. It is a “furnace structure” round wire, surrounded by the walls forming the facades. In the first 6 floors no windows, resulting in principle resistant to a possible terrorist attack, such as a car bomb. Reinforced concrete is used crude (béton brut) with a dye colored sand, glass and steel reinforced especially in building this “vault”.

The exterior facades lining the nucleus are surrounded on the ground floor of an atrium with glass walls and aluminum frames, with a cover on metal plates. On the street facade 43 stone panel combined with a projected coated steel plates wall detail stone wall is also repeated on the main facade. The tower walls are of concrete tinted with earth tones and with openings ranging from low to high as it rises and from the sixth floor. On the side of the facade facing the UN building facades not come to unite, leaving visible part of the inner metal structure.

Features

• The building designed by Gwathmey Siegel has a thick outer walls of reinforced high strength concrete to resist an attack.

• The windows, one of the most vulnerable features of a building, do not begin until the seventh floor, and then they graduate in size as they rise above the street to the auditorium on the top floor.

• The lower floors house the heating, ventilation and other mechanical systems usually are towards the center and at the top of a tower. The core housing lifts and conduits has a zinc coating.

• The airy main entrance is made of tempered glass with a steel frame to minimize injury in the event of an explosion. At first glance it is a reception as welcoming as that of any of the buildings that surround it, except at the entrance have a faint curtain air pressure to prevent the entry of unwanted chemical or biological agents.

• The building is slightly away on a busy street corner with steel bollards close together in substitution of the characteristic wooden trestles or concrete blocks showing other government buildings.

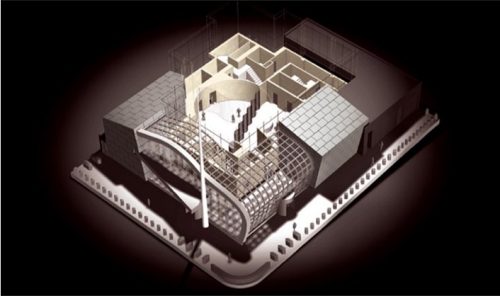

Planos
