Saint Mary’s Cathedral of Tokyo
Architect
Built in
1961-1964
Height
61.68 m
Roof Height
39.42 m
Floor Area
3,649.9 m2
Location
Tokyo, Japan
Some parts of this article have been translated using Google’s translation engine. We understand the quality of this translation is not excellent and we are working to replace these with high quality human translations.

Introduction

“Architecture is the creation of a special form of understanding of reality. It works and transforms reality through the construction of an important object of use. The object of this art form, on the other hand, has the dual quality of serve as a mirror and enhance it.
This understanding of reality that takes place through the creation of the architecture requires that the anatomy of it, as its substantial and spiritual structure, be understood as a whole “Kenzo Tange.

History

Until 1945, when it was destroyed by an air raid during World War II, Tokyo was the cathedral of Gothic style and wood. Founded in 1899 as a chapel for French students of the Seminary of Missionaries, in 1900 became the parish church of Sekiguchi.

In 1960 the architect Kenzo Tange won the tender for reconstruction work began in 1961 within the 15,098 square feet comprising the entire area of the Episcopal Diocese of Tokyo and ending in 1964.

Restoration

Due to the infiltration of rainwater through the years, the bolts fixing the outer steel sheets have been rusting ido, allowing strong winds or typhoons, so common in this zone were dropping, some carrying and in other cases causing high risk of causing serious accidents.

Taisei Construction Co. along with and support of Tange Associates in 2007 began the restoration of all parties, mainly the roof that offered a further deterioration. With a scaffolding around the cathedral and a giant crane was dismissed the original stainless steel cladding to be replaced by others assembled with a special technique that does not allow any seepage after waterproofing the walls that were placed on the armor shielding Zinc 25mm impermeable cement.

The skylight of the roof was also replaced by an aluminum frame and tempered glass, creating a more affordable so that engineers can perform the necessary inspections.

Location

The Cathedral of Santa Maria, is on 3-15-16 Sekiguchi, Bunkyo-ku 112-0014, Tokyo, Japan.

Concept

Following his term “metabolism”, designed the cathedral as a living entity that should transcend beyond the borders of Japan to become an architecture used for all peoples, combining technology and humanity, rising above the mundane and inspiration for getting construction in many of the Gothic churches that Tange visited on that occasion.

Spaces

Spaces and doors made with its high walls deviate from the model of Japanese temple, close to design a much more international diamond volume, although the skirts of the roofs may have evoked some of the traditional Japanese architecture and Buddhist temples or Zionists, with spacious roof falls.

Secondary buildings contrast with the main building in their ways, they are rectangular and are joined to it by roads and platforms.

Basement

In the basement of 1005.5 square meters, there is a small chapel that can accommodate 200 seated and 100 standing, in addition to numerous services relating to the activities of the temple.

Ground floor

In this plant, from 2541.4 meters square, the Cathedral has a capacity for 600 people seated and 2000 standing.

  • Access – Two high concrete walls that frame the four large windows indicate the main entrance is located where a large wooden door.
  • Altar – At the high sanctuary is the altar itself, the music and the venue for the priest, this area is accessed by some stairs. On the back it features a cross, The Holly Cross, which stands behind a marble plaque of 17 meters and illuminated by soft light that enters the cathedral.
  • 2nd Floor and 3rd Floor – The second and third floor of 71 square meters respectively and 32 are devoted almost entirely to tasks related to the body, its operation and maintenance.
  • Body – Above the main entrance displays a balcony that has been assigned to the location of the body.
  • The Bell Tower – Like many European cathedrals, the bell tower of the cathedral of Santa Maria is not in the same temple, but a few meters. It stands majestically showing its 60 meters high and its walls of concrete also apparent and aesthetically integrated with the whole complex, housing four bells were brought from West Germany. At first glance the four sides of the bell seemed flat, but in reality are hyperbolic and its four corners amount as a single straight line.
  • Baptistry – Located in the crypt of the church, to the right of the entrance. The baptism itself is the form of an open hand that receives the light from above. The sculptor of this stack was Seiji Shimizu.

Structure

On a concrete base shaped like a Latin cross walls rise high reaffirming the design of the plant and which are deployed eight hyperbolic parables that support the roof of the cathedral and leading to four main facades. The structure consists of eight curved panels together and upright almost vertically.

The roof, windows with skylights, a large cross shape and is the only place where the temple receives natural light, while it extends to the ends of the cross, reaching the ground as skirts, design that is appreciated better from the outside.

Materials

The exterior surfaces of the cathedral are lined with sheets of galvanized aluminum and stainless steel frames and supported by iron bolts, while the back wall of reinforced concrete to be in sight, feature the works of the architect.

By skylight where the only natural light received by the temple are closed by glass and above the main door are two wooden walls that frame windows 4 amber or ocher tone.

Both the music of the altar as plate 17 meters high that serves as background to The Holly Cross are of Italian marble.

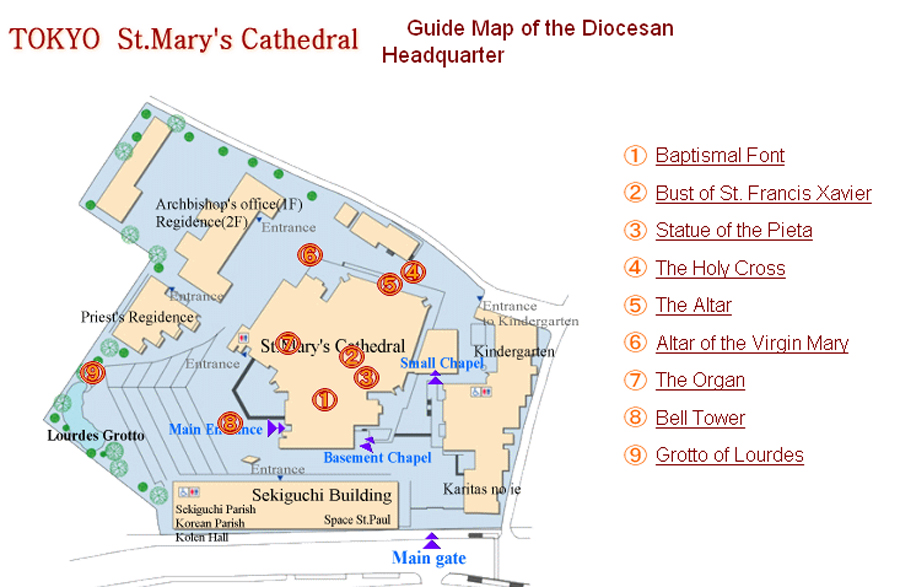

Drawings

Photos

Pictures during the restoration
