Eiffel Tower

Architect
Engineer
Emile Nouguier, Maurice Koechlin
Structural Engineer
Gustave Eiffel
Built in
1887-1889
Remodeled in
1890, 1900, 1903, 1909, 1925, 1937, 1981-1983, 2009
Weight
10,000 tons
Original Weight
7,300 tons
Height
324 m
Roof Height
300 m
Top Floor Height
273 m
Floors
3
Elevators
7
Location
Paris, France
Some parts of this article have been translated using Google’s translation engine. We understand the quality of this translation is not excellent and we are working to replace these with high quality human translations.

Introduction

The French engineer Gustave Eiffel presented his first draft tower to those responsible for the City of Barcelona, to be built in this city on the occasion of the Universal Exposition of Barcelona (1888), but those responsible for the Barcelona city hall had seemed a strange building, And face, it does not fit into the city. Following the refusal of the council of Barcelona, Eiffel, presented his project to those responsible for the Universal Exhibition in Paris, where he erigiría a year later, in 1889. They agreed to build the tower, even though in principle they thought that they would have to disassemble once the exhibition. Only the will of the people stopped were broken.

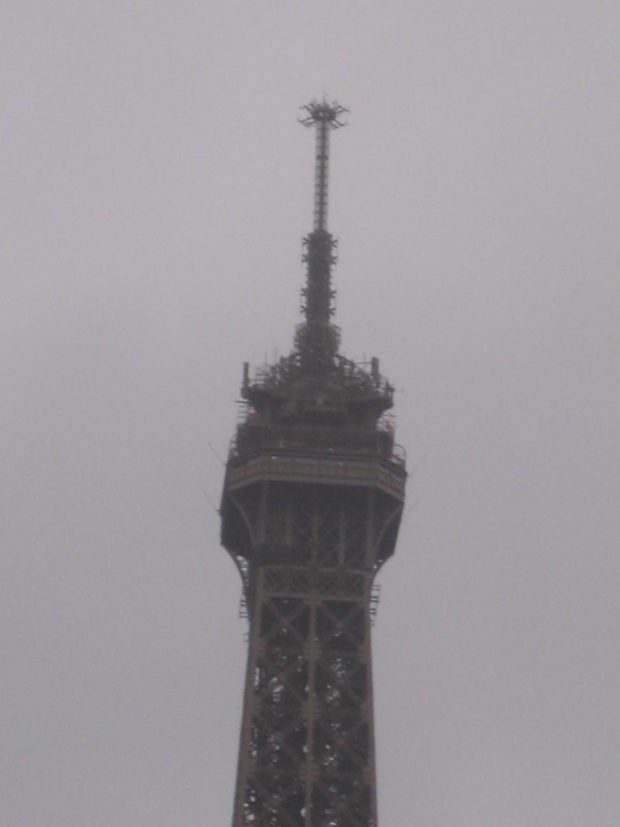

When the monument was built was highest in the world, with 300 meters high (if the amount of radio antenna that is at its peak, its height is 324 meters). When built, the tower weighs about 7,300 tons, while today it is estimated his weight at more than 10,000 (due to the museum, restaurants, stores and shops that hosts). It was expected that the tower reaches 350 meters in height, but the neighbors were alarmed by the threat of a building as tall and built with little stones could fall off, and marched, causing a change in plans. The 24 meters last fall to a radio antenna that was added much later.

In the first decade of s. XX, Parisians showed their displeasure with Torre, who came to the point that the government gave the order for demolition. But his great and powerful antenna saved from destruction because it was receiving radio waves in Germany, in World War I, which served as a great help to the allies.

Structure

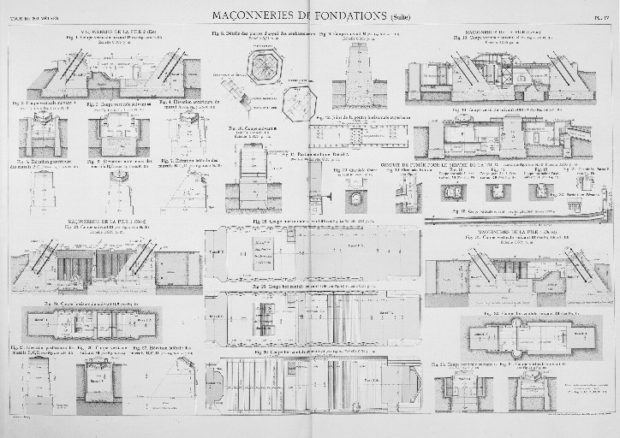

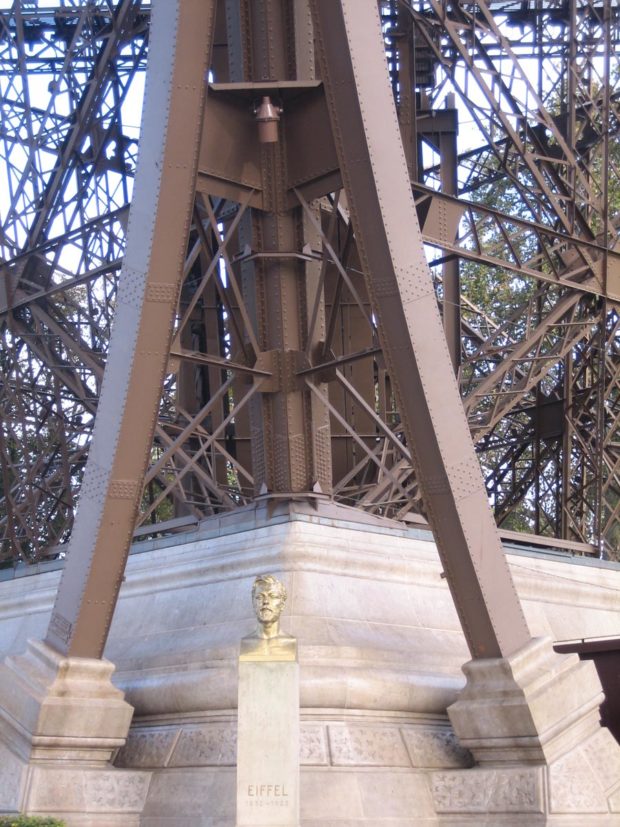

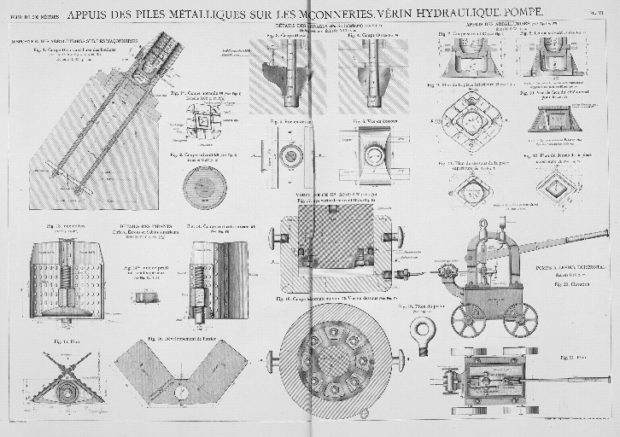

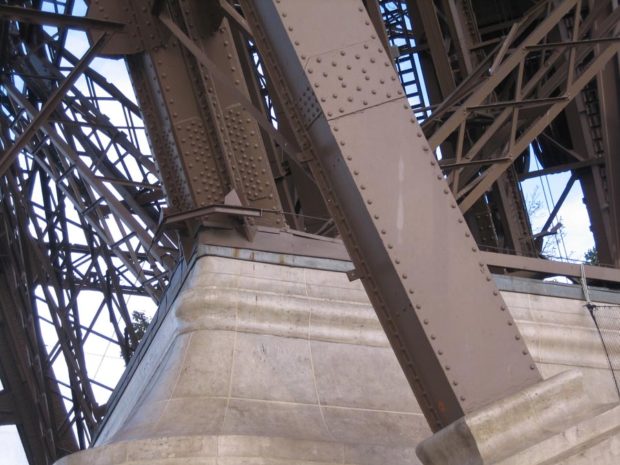

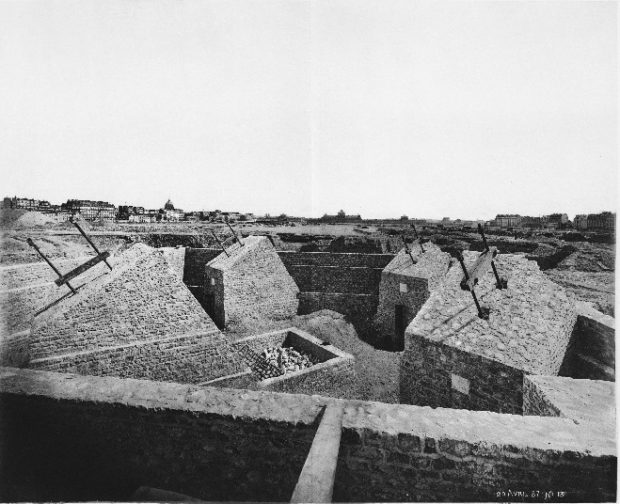

Because of the proximity of the river and the nature of the subsoil has its foundations in each of its four support, a depth of about thirty meters. Each of its four legs resting on eight hydraulic jacks so you can actually consider that the tower is 32 feet.

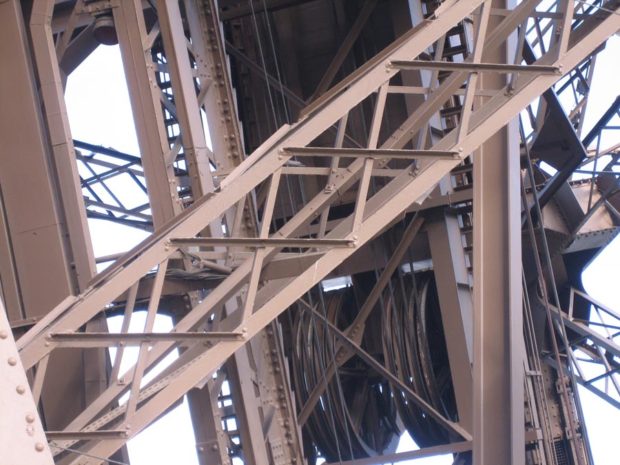

It is believed that approximately half of the unions with which the structure (by rivet) are made for safety reasons, namely that the tower would remain standing but failed half of the joints between their parts. This ensured from the outset the reliability of the Tower, given that at the time of its construction many Parisians were afraid that he might fall off causing a catastrophe.

The colossal structure, formed among others, 18,000 pieces of angle profiles, flat irons and special profiles T, had a length of 5 meters and precision manufacture of the tenth of a millimeter, who joined with 2.5 million rivets.

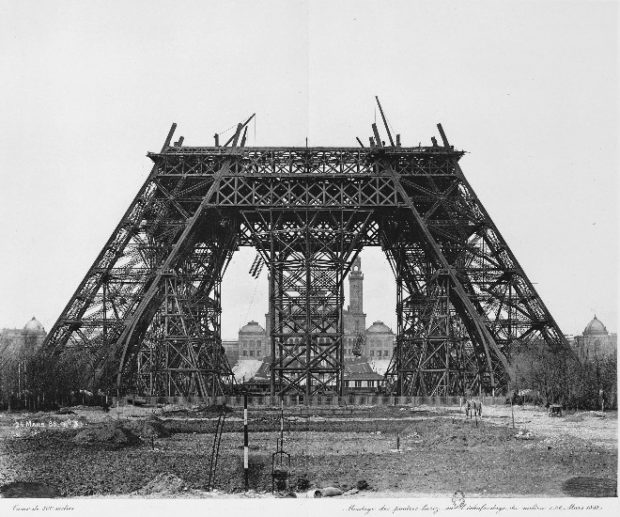

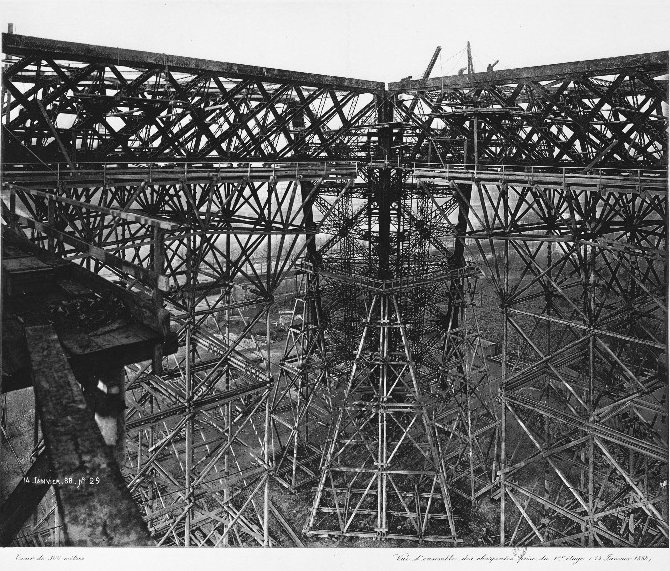

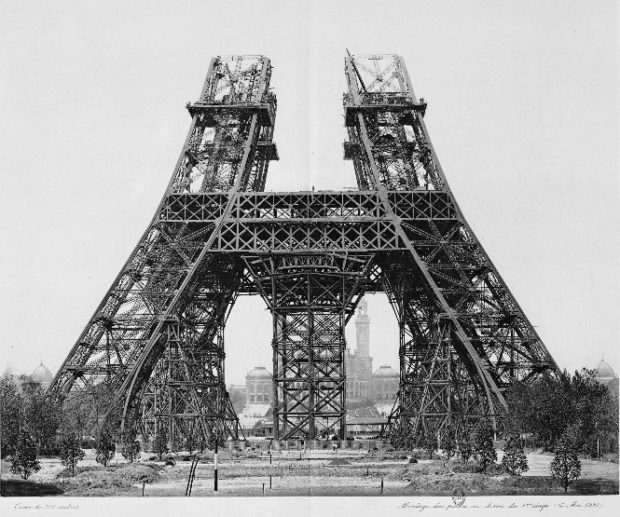

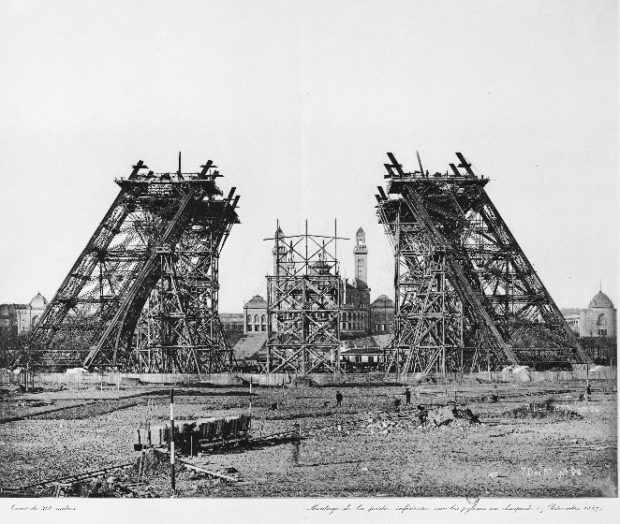

A third of the entire structure was put together in pre-workshop and the rest, eventually joined as a gigantic mechanism in the work, with the help of about 300 workers.

According to the ambient temperature, the top of the Eiffel Tower can zoom in or out of the ground about 18 centimeters, due to thermal expansion of the metal that composes.

The lateral oscillation of the tower is a maximum of 7 cm

Materials

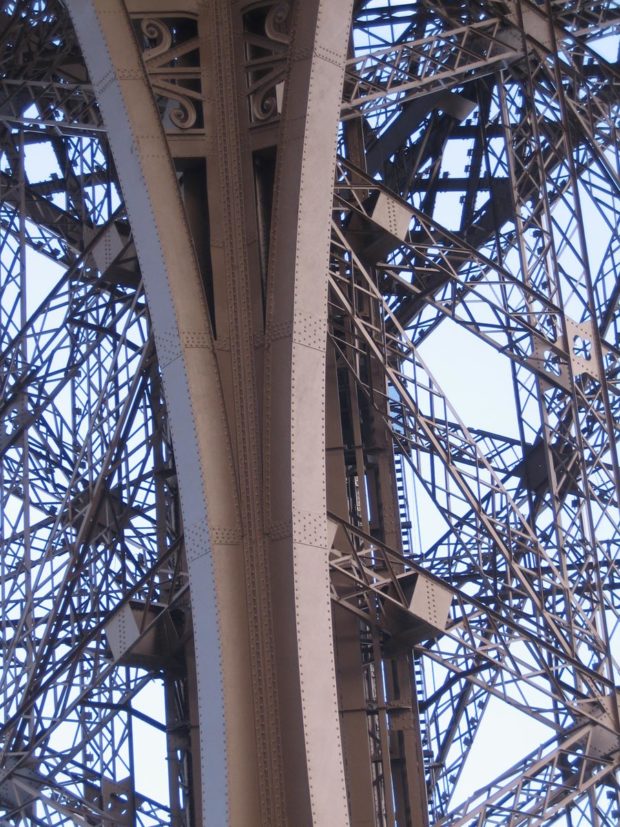

Wrought iron (Pudel) erected in the form of 18,038 pieces Entrecruzadas set by 2,500,000 rivets. The structure of the masterpiece of Gustave Eiffel was very aerated and the robustness of their materials, their weight is 7,300 hue.

The iron Pudel, unlike steel, was obtained by shaking in the oven, iron and slag, increasing oxidation and becoming more viscous iron. It was well produced, a material that was approaching the composition of the steel, which could then laminated hot.

Lighting

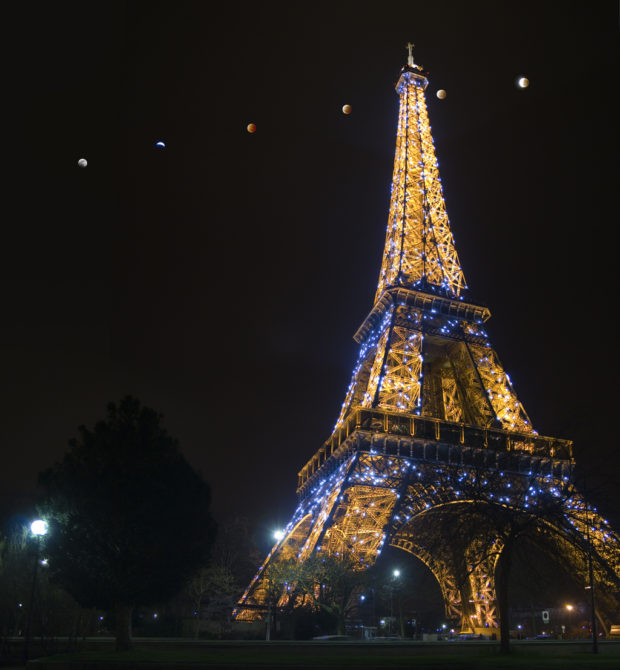

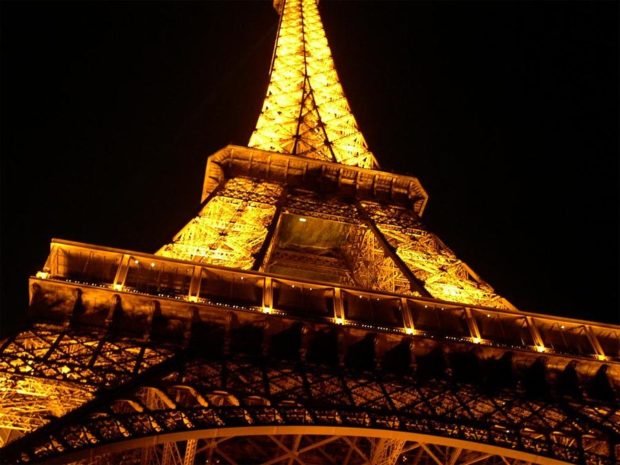

The “Queen of Metal” is illuminated by spotlights 352 and 1,000 watts Centallo every half hour per night with 20,000 ampoules and 800 blinking.

To give more life and elegance to the tower, 4 reflectors with xenon lights of 6,000 watts that rotate so permantente at the summit.

In addition to the illumination of the Eiffel Tower normal that on a clear day is visible from 80km away, the Tower has a particularly striking and bright lights, after nightfall, during the first 10 minutes of each hour (until 2 am normally, and until 1 a.m. in winter) light up thousands of twinkling bulbs that give the Eiffel Tower a more magical even if it’s that it has in itself.

Viewpoints

If something needs to be done “when it is going to visit Paris is undoubtedly climb the Eiffel Tower, although there are different ways to climb the Eiffel Tower, since there are three different plants to which we can access, and two different forms, In elevator, the more comfortable, or climb on foot, without a doubt the most sporting and healthy (also the cheapest) to climb the Eiffel Tower.

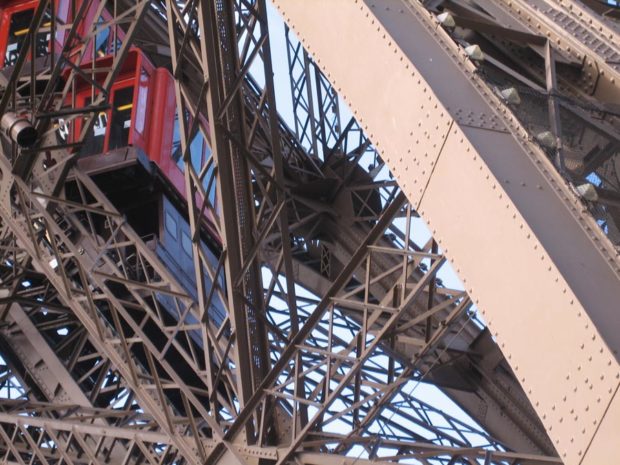

If we can get in an elevator from the base of the Eiffel Tower to its second plant, located to “solo” 115 meters high, and if we are brave enough we can get there it will take another elevator to the top of the Eiffel Tower, to 276 meters high or more, no less (there are facilities for a little above where you can upload the public, but of course access to these facilities is closed to visitors).

If you climb on foot can only go up to the second floor.

Restaurants

The Eiffel Tower disponde two restaurants:

The Altitude 95, located on the first floor of the Eiffel Tower, which owes its name to 95 meters is the height of the Eiffel Tower in his first floor with sea level. The restaurant has a capacity of two hundred people, and on one hand has fantastic views of the Seine and the Trocadero, on the other gives the interior of the Eiffel Tower. The restaurant also has a bar.

The Jules Verne is one of the best restaurants not only in Paris, but if we talk about all of France. This is a restaurant keeper of a star from the Michelin Guide, which is located on the second floor of the Eiffel Tower, and whose customers can access the restaurant via a private elevator to avoid having to queue up with others visitors. Private access to the restaurant is located in the South Pillar of the tower.

Video

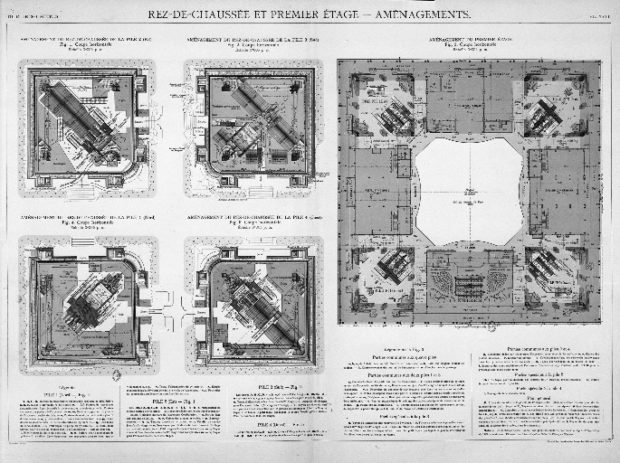

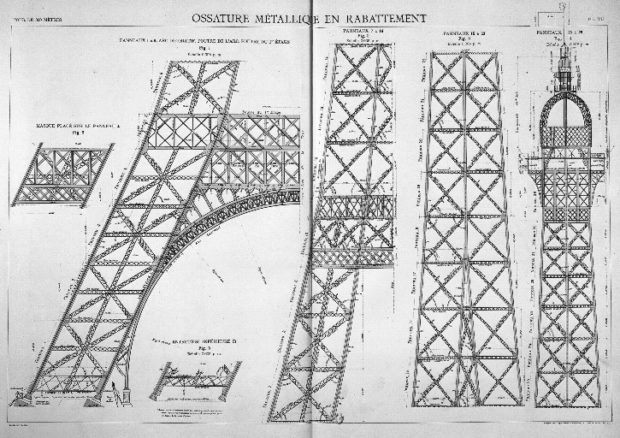

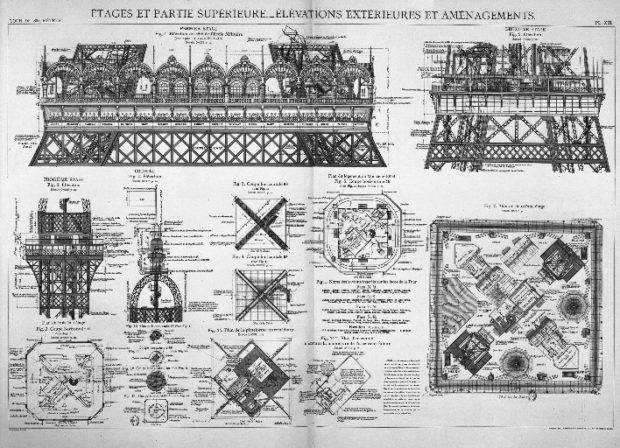

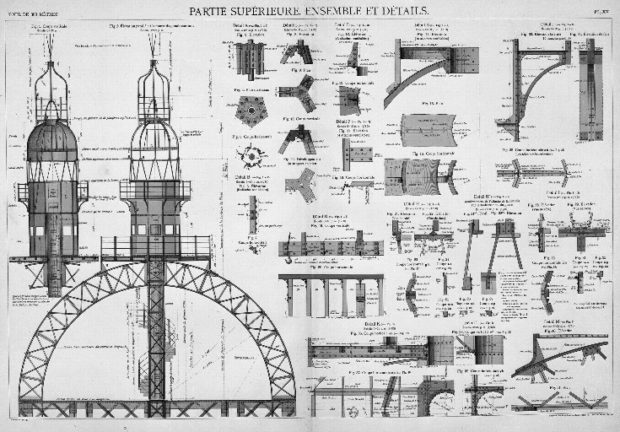

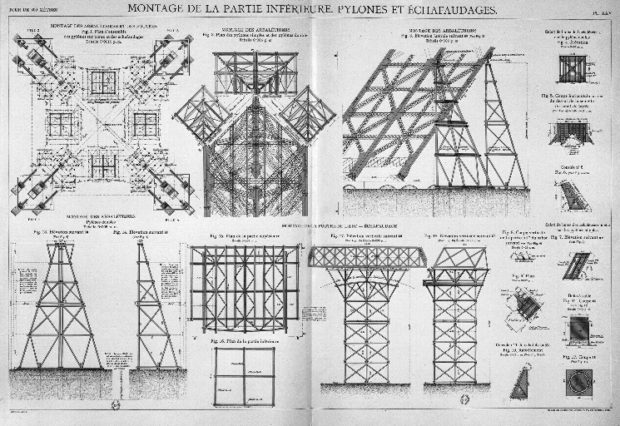

Drawings

Fotos WikiArquitectura (Octubre 2011)

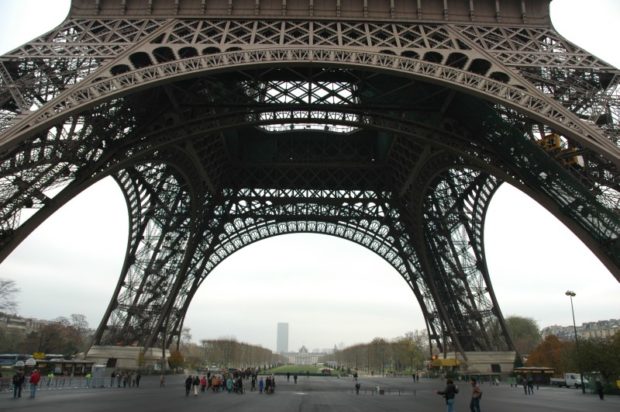

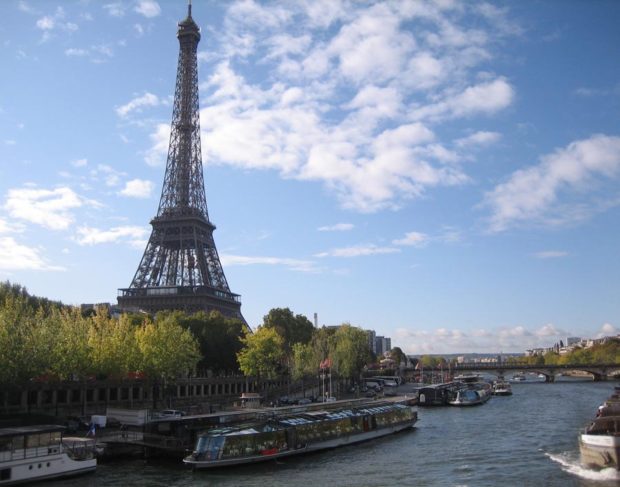

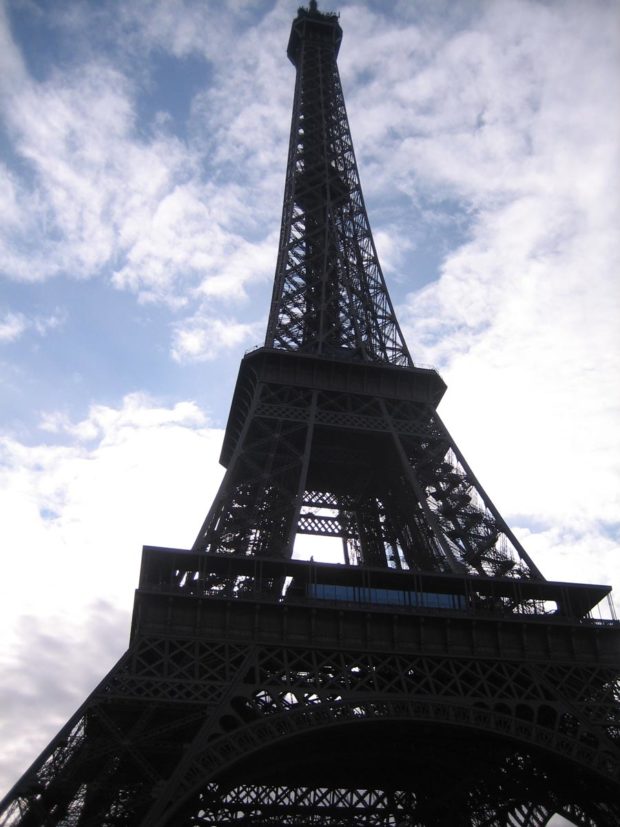

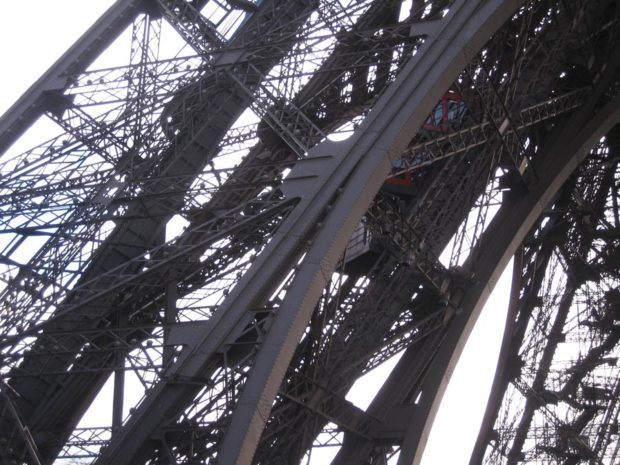

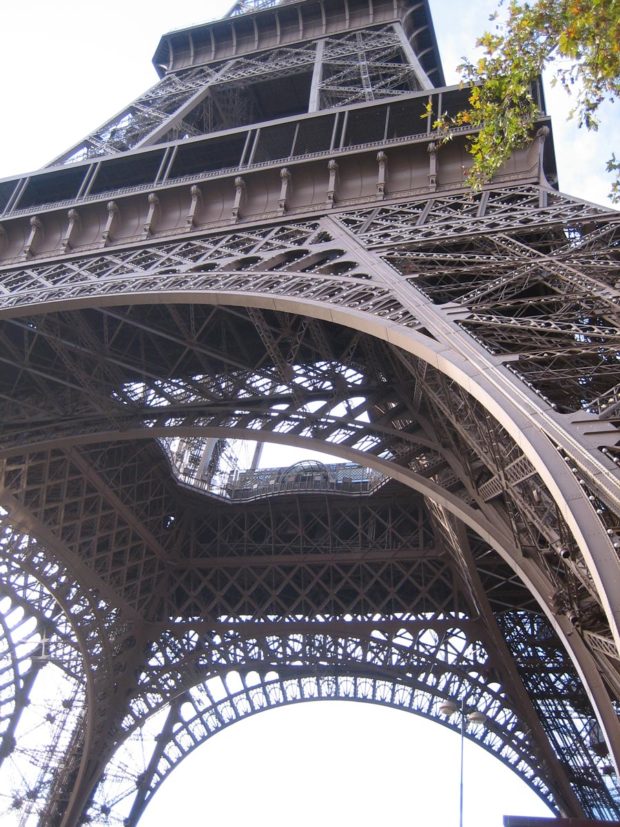

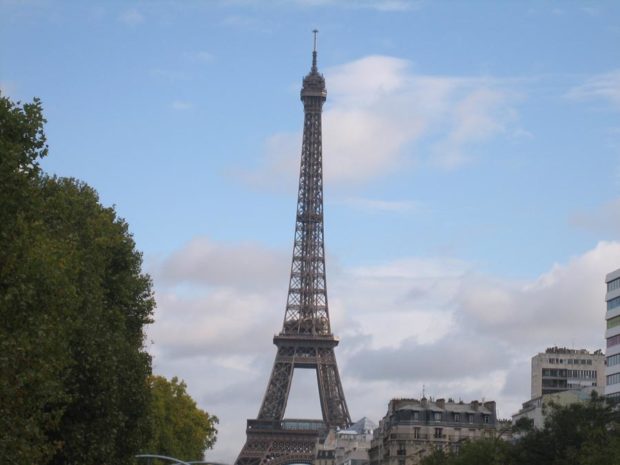

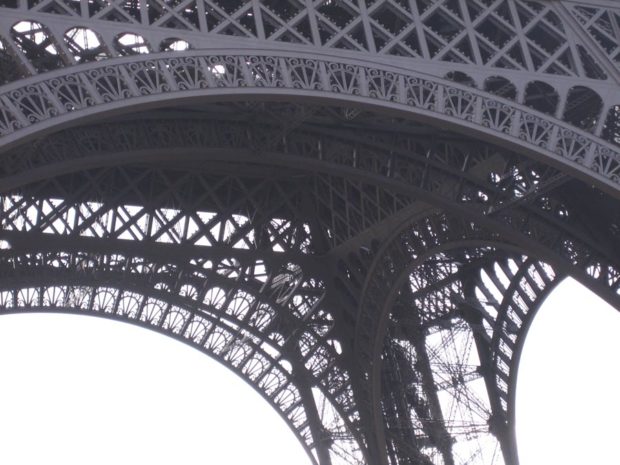

Photos
